Gripper Delivery UV spot Coating Machine

Ustar-36 Ustar-40

Gripper Delivery UV spot Coating Machine is a versatile UV system capable for both spot and full sheet coating by combining the construction of offset printing press and roller coating technology. Contact us if you are tempting!

❙ Description

Gripper Delivery UV spot Coating Machine is introduced to replace the traditional silk-screen printing method for spot UV coating. It enhances production speed and adopts less expensive UV resin of lower cost. By combining the construction of offset printing press and roller coating technology, the Ustar Series is a versatile UV system capable for both spot and full sheet coating.

❙ Product Features:

Accurate spot coating registration for eye-catching effect.
Equipped with large format impression cylinder for fine coating.
Easy change over for various substrate thickness (80-450 gsm).
Ergonomic and user friendly design.
Robust construction with automatic lubrication system.
Machine meets all current security and safety standards, with warning signals and safety devices.
Space saving, high productivity and low power consumption.

❙ Product Equipment:

Stream feeder.
Multi-functional coating mechanism.
Hot air drying unit (option for water-based coating).
UV curing system
IR drying system (option for water-based coating).
Delivery Unit.

❙ Product Specification:

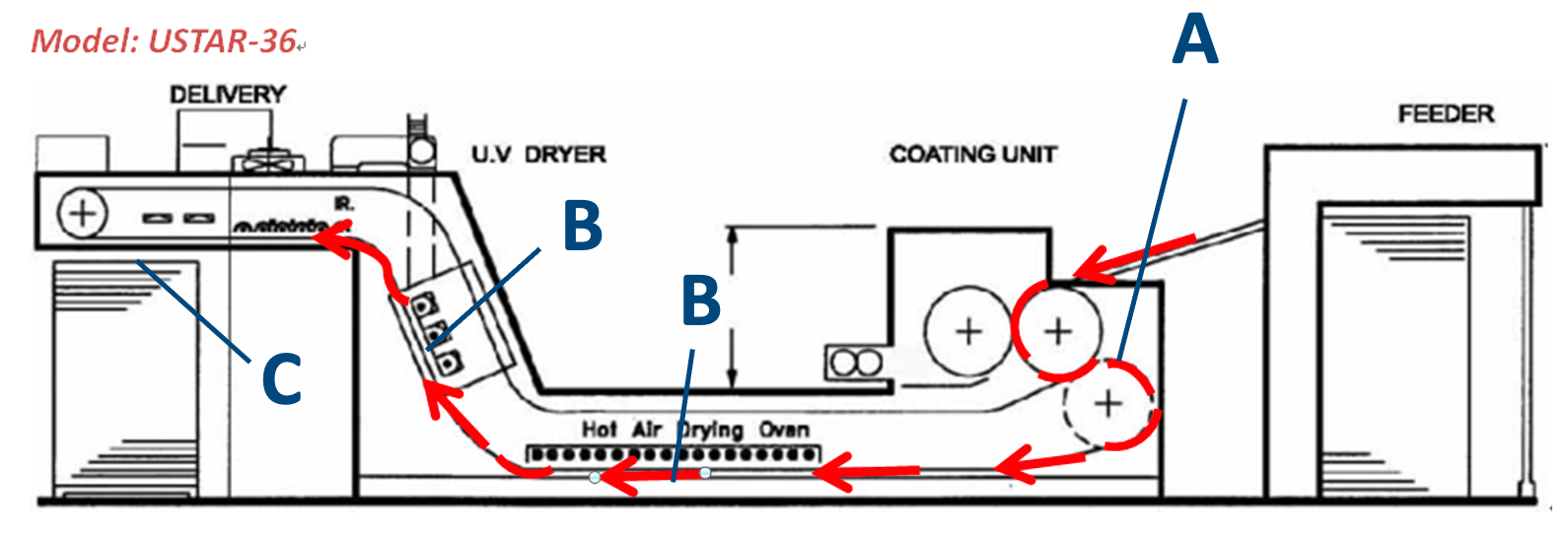

Gripper Type

Sheets Delivery

After Coating

A) Transferred by (long) Chain Delivery Gripper System.

B) Gripped through UV or IR dryer

C) Dropped by grippers when papers reach Delivery Unit.

Max. Sheet Size	800 x 1100 mm (Ustar-36) 920 x 1280 mm (Ustar-40)
Min. Sheet Size	340 x 406 mm
Coating area	790 x 1090 mm (Ustar-36) 910 x 1270 mm (Ustar-40)
Paper thickness	80-450gsm
Machine Speed	Up to 5000 Sheets / hour
Dimension (LxWxH)	7735 x 2840 x 2010mm (WB)
Dimension (LxWxH)	8395 x 2840 x 2010mm (UV)
Total Weights	7000(WB) /7500(UV) kg
Total Power required	64.3(WB) / 40.3 (UV) kw
